SD11704

900V SiC N-Channel Power MOSFET

SD11704 Features

* LOW RDS(ON) AND QG AVALANCHE RATED TO-258 5L PACKAGE HERMETICALLY SEALED, ISOLATED PACKAGE JANTX, JANTXV SCREENING AVAILABLE APPLICATIONS SWITCH-MODE AND RESONANT-MODE POWER SUPPLIES DC-DC CONVERTERS PFC CIRCUITS AC AND DC MOTOR DRIVES ROBOTICS AND SERVO CONTROLS SD11704 900V SiC N-Channel Power MO

SD11704 General Description

900V SiC N-Channel Power MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated) PARAMETER SYMBOL VALUE Drain to Source Voltage (static) VDSmax 900V Continuous Drain Current ID 32A Pulsed Drain Current IDM 128A Max. Power Dissipation PD 278W Gate-to-Source Voltage (dynam.

SD11704 Datasheet (97.56 KB)

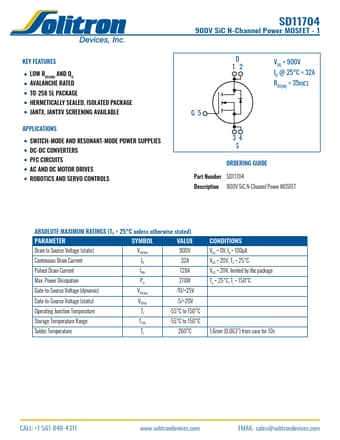

Preview of SD11704 PDF

Datasheet Details

Part number:

SD11704

Manufacturer:

Solitron Devices

File Size:

97.56 KB

Description:

900v sic n-channel power mosfet.
