ACX302AK

8.80cm (3.5 Type) NTSC/PAL Color LCD Panel

ACX302AK Features

* Number of active dots: 200,000, 8.80cm (3.5 Type) in diagonal

* Horizontal resolution: 440 TV lines

* Optical transmittance: 8.2% (typ.)

* High contrast ratio with normally white mode: 200 (typ.)

* Built-in H and V driving circuitry (built-in input level con

ACX302AK General Description

The ACX302AK is a 8.80cm diagonal active matrix TFT-LCD panel addressed by low temperature polycrystalline silicon transistors with built-in peripheral driving circuitry. This panel provides fullcolor representation for NTSC and PAL systems. In addition, RGB dots are arranged in a delta pattern that.

ACX302AK Datasheet (365.34 KB)

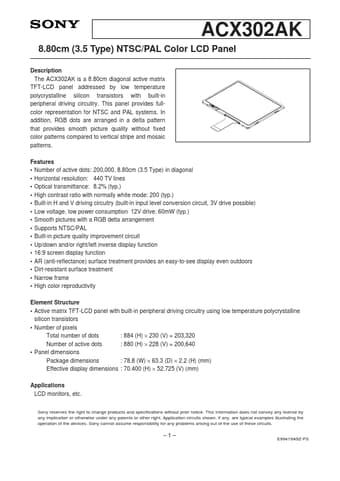

Preview of ACX302AK PDF

Datasheet Details

Part number:

ACX302AK

Manufacturer:

Sony Corporation

File Size:

365.34 KB

Description:

8.80cm (3.5 type) ntsc/pal color lcd panel.
