ACX306BKU - NTSC/PAL Color LCD

Datasheet Summary

Description

backlight developed exclusively for the ACX306BKU 3.86cm diagonal active matrix TFT-LCD panel addressed by low temperature polycrystalline silicon transistors with built-in peripheral driving circuitry.

Features

  • Total module thickness: 3.09mm (typ. ) ultra-thin type, narrow frame.
  • Low voltage, low power consumption: 12V drive, 43mW (panel block, typ. ).
  • Number of active dots: 118,000 dots, 3.86cm (1.5-type) in diagonal.
  • Center luminance Standard mode: 170cd/m2 (backlight 144mW typ. ) High luminance mode: 200cd/m2 (backlight 185mW typ. ).
  • Horizontal resolution: 240 TV lines.
  • Optical transm.

📥 Download Datasheet

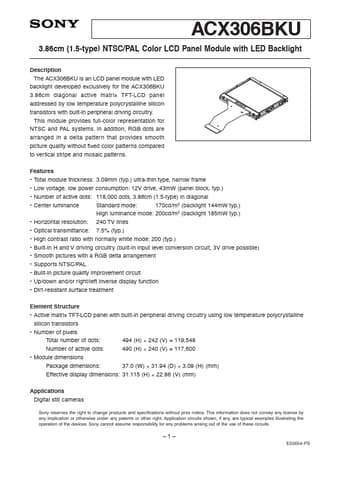

Datasheet preview – ACX306BKU

Datasheet Details

Part number ACX306BKU
Manufacturer Sony
File Size 341.71 KB
Description NTSC/PAL Color LCD
Datasheet download datasheet ACX306BKU Datasheet
Additional preview pages of the ACX306BKU datasheet.

📁 Similar Datasheet

  • ACX306BKM - 3.86cm (1.5-type) NTSC/PAL Color LCD Panel Module with LED Backlight (Sony Corporation)
  • ACX306 - 3.86cm (1.5 Type) NTSC/PAL Color LCD Panel (Sony Corporation)
  • ACX306AK - 3.86cm (1.5 Type) NTSC/PAL Color LCD Panel (Sony Corporation)
  • ACX300 - Low-temperature Polysilicon TFT LCDs (ETC)
  • ACX300AK - Low-temperature Polysilicon TFT LCDs (ETC)
  • ACX301AK - Low-temperature Polysilicon TFT LCDs (ETC)
  • ACX301AKM - 5.1cm (2.0 Type) NTSC/PAL Color LCD Panel (Module with Backlight) (Sony Corporation)
  • ACX302 - 8.80cm (3.5 Type) NTSC/PAL Color LCD Panel (Sony Corporation)
  • ACX302AK - 8.80cm (3.5 Type) NTSC/PAL Color LCD Panel (Sony Corporation)
  • ACX302AK - Low-temperature Polysilicon TFT LCDs (ETC)
Other Datasheets by Sony

Full PDF Text Transcription

Click to expand full text
ACX306BKU 3.86cm (1.5-type) NTSC/PAL Color LCD Panel Module with LED Backlight Description The ACX306BKU is an LCD panel module with LED backlight developed exclusively for the ACX306BKU 3.86cm diagonal active matrix TFT-LCD panel addressed by low temperature polycrystalline silicon transistors with built-in peripheral driving circuitry. This module provides full-color representation for NTSC and PAL systems. In addition, RGB dots are arranged in a delta pattern that provides smooth picture quality without fixed color patterns compared to vertical stripe and mosaic patterns. Features • Total module thickness: 3.09mm (typ.) ultra-thin type, narrow frame • Low voltage, low power consumption: 12V drive, 43mW (panel block, typ.) • Number of active dots: 118,000 dots, 3.86cm (1.
