ACX385AKM-8

6.3cm (2.5-type) NTSC Color LCD

ACX385AKM-8 Features

* Number of active dots 640(H)×240(V) =153,600 dots

* System display Built-in Driving circuits as following LCD Timing generator & H/V Driving circuits Direct digital Interface receiver circuits ( Mck 13.5MHz RGB serial format) 3-wire serial control circuits D/A converter (8bits) circuits LCD

ACX385AKM-8 General Description

The ACX385AKM-8 is an LCD panel module with LED backlight developed exclusively for the ACX385AKM-8 6.3cm diagonal active matrix TFT-LCD panel addressed by low temperature polycrystalline silicon transistors with built-in peripheral driving circuits. Especially ACX385AKM-8 is so called SYSTEM DISPLA.

ACX385AKM-8 Datasheet (1.68 MB)

Preview of ACX385AKM-8 PDF

Datasheet Details

Part number:

ACX385AKM-8

Manufacturer:

Sony

File Size:

1.68 MB

Description:

6.3cm (2.5-type) ntsc color lcd.

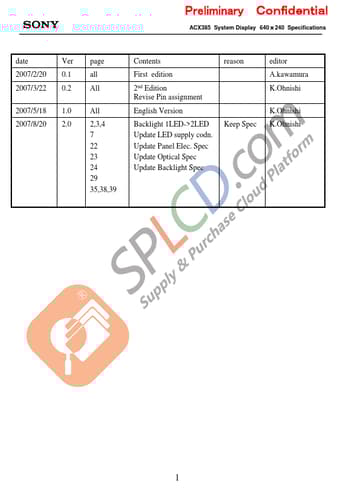

Preliminary Confidential ACX385 System Display 640×240 Specifications date Ver 2007/2/20 0.1 2007/3/22 0.2 2007/5/18 1.0 2007/8/20 2.0 page all .
