ACX306AK

3.86cm (1.5 Type) NTSC/PAL Color LCD Panel

ACX306AK Features

* Number of active dots: 118,000, 3.86cm (1.5 Type) in diagonal

* Horizontal resolution: 240 TV lines

* Optical transmittance: 6.5% (typ.)

* High contrast ratio with normally white mode: 200 (typ.)

* Built-in H and V driving circuitry (built-in input level con

ACX306AK General Description

The ACX306AK is a 3.86cm diagonal active matrix TFT-LCD panel addressed by low temperature polycrystalline silicon transistors with built-in peripheral driving circuitry. This panel provides full-color representation for NTSC and PAL systems. In addition, RGB dots are arranged in a delta pattern tha.

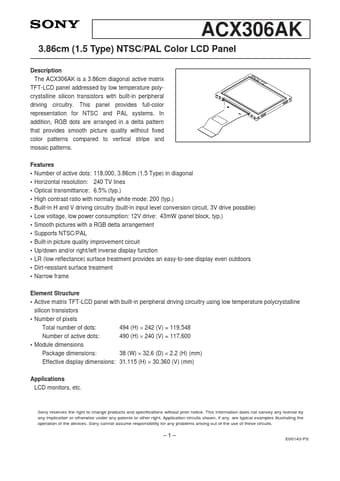

ACX306AK Datasheet (381.47 KB)

Preview of ACX306AK PDF

Datasheet Details

Part number:

ACX306AK

Manufacturer:

Sony Corporation

File Size:

381.47 KB

Description:

3.86cm (1.5 type) ntsc/pal color lcd panel.
