ACX306BKM - 3.86cm (1.5-type) NTSC/PAL Color LCD Panel Module with LED Backlight

Datasheet Summary

Description

The ACX306BKM is an LCD panel module with LED backlight developed exclusively for the ACX306BKM 3.86cm diagonal active matrix TFT-LCD panel addressed by low temperature polycrystalline silicon transistors with built-in peripheral driving circuitry.

Features

  • Total module thickness: 3.9mm (typ. ) ultra-thin, narrow frame type.
  • Center luminance Standard mode: 260cd/m2 (backlight 210mW typ. ) High luminance mode: 330cd/m2 (backlight 290mW typ. ).
  • White LED backlight eliminates the need for an inverter, achieves instant luminance rise, and maintains high luminance even at cold temperatures.
  • Backlight life (luminance half-life) guaranteed at 5000h for normal temperature operation and 1000h for high temperature operation.

📥 Download Datasheet

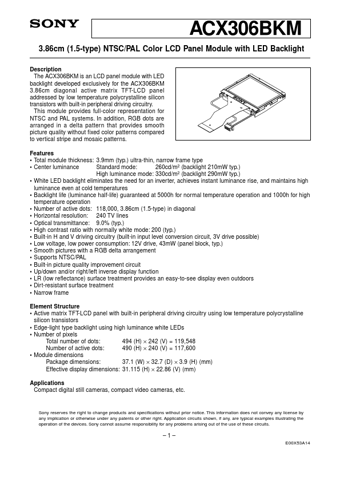

Datasheet preview – ACX306BKM

Datasheet Details

Part number ACX306BKM
Manufacturer Sony Corporation
File Size 226.42 KB
Description 3.86cm (1.5-type) NTSC/PAL Color LCD Panel Module with LED Backlight
Datasheet download datasheet ACX306BKM Datasheet
