ACX306 - 3.86cm (1.5 Type) NTSC/PAL Color LCD Panel

Datasheet Summary

Description

The ACX306AK is a 3.86cm diagonal active matrix TFT-LCD panel addressed by low temperature polycrystalline silicon transistors with built-in peripheral driving circuitry.

This panel provides full-color representation for NTSC and PAL systems.

Features

  • Number of active dots: 118,000, 3.86cm (1.5 Type) in diagonal.
  • Horizontal resolution: 240 TV lines.
  • Optical transmittance: 6.5% (typ. ).
  • High contrast ratio with normally white mode: 200 (typ. ).
  • Built-in H and V driving circuitry (built-in input level conversion circuit, 3V drive possible).
  • Low voltage, low power consumption: 12V drive: 43mW (panel block, typ. ).
  • Smooth pictures with a RGB delta arrangement.
  • Supports NTSC/PAL.

📥 Download Datasheet

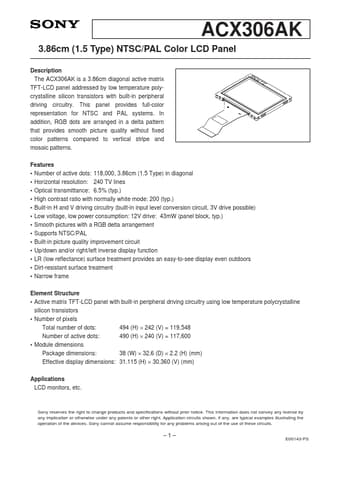

Datasheet preview – ACX306

Datasheet Details

Part number ACX306
Manufacturer Sony Corporation
File Size 381.47 KB
Description 3.86cm (1.5 Type) NTSC/PAL Color LCD Panel
Datasheet download datasheet ACX306 Datasheet
Additional preview pages of the ACX306 datasheet.

📁 Similar Datasheet

  • ACX306BKU - NTSC/PAL Color LCD (Sony)
  • ACX300 - Low-temperature Polysilicon TFT LCDs (ETC)
  • ACX300AK - Low-temperature Polysilicon TFT LCDs (ETC)
  • ACX301AK - Low-temperature Polysilicon TFT LCDs (ETC)
  • ACX302AK - Low-temperature Polysilicon TFT LCDs (ETC)
  • ACX310 - High-Transmittance/Low-Power Transmissive Color 8.8 cm (3.5-type) 123K-Dot LCD Panel (ETC)
  • ACX310AK - High-Transmittance/Low-Power Transmissive Color 8.8 cm (3.5-type) 123K-Dot LCD Panel (ETC)
  • ACX312 - Miniature High-Precision 4.6 cm (1.8-type) 118K-Dot Digital Still Camera Color LCD Features a Viewing Area Ratio of 100% (ETC)
  • ACX318ELN - NTSC/PAL Color LCD (Sony)
  • ACX385AKM-8 - 6.3cm (2.5-type) NTSC Color LCD (Sony)
Other Datasheets by Sony Corporation
  • ACX306AK - 3.86cm (1.5 Type) NTSC/PAL Color LCD Panel
  • ACX306BKM - 3.86cm (1.5-type) NTSC/PAL Color LCD Panel Module with LED Backlight
  • ACX301AKM - 5.1cm (2.0 Type) NTSC/PAL Color LCD Panel (Module with Backlight)
  • ACX302 - 8.80cm (3.5 Type) NTSC/PAL Color LCD Panel
  • ACX302AK - 8.80cm (3.5 Type) NTSC/PAL Color LCD Panel
  • ACX704AKM - 9.60cm (3.78 Type) QVGA Reflective Color LCD Module
  • ACX705AKM - 6.92cm Diagonal Reflective Color LCD Module
  • ACX709AKM - 7.60cm Reflective Color LCD Module

Full PDF Text Transcription

Click to expand full text
ACX306AK 3.86cm (1.5 Type) NTSC/PAL Color LCD Panel Description The ACX306AK is a 3.86cm diagonal active matrix TFT-LCD panel addressed by low temperature polycrystalline silicon transistors with built-in peripheral driving circuitry. This panel provides full-color representation for NTSC and PAL systems. In addition, RGB dots are arranged in a delta pattern that provides smooth picture quality without fixed color patterns compared to vertical stripe and mosaic patterns. Features • Number of active dots: 118,000, 3.86cm (1.5 Type) in diagonal • Horizontal resolution: 240 TV lines • Optical transmittance: 6.5% (typ.) • High contrast ratio with normally white mode: 200 (typ.
