CXA1852N Quadrature Modulator for 900 MHz-Band Mobile Communications

Sony Corporation

Description

CXA1852N Quadrature Modulator for 900 MHz-Band Mobile Communications For the availability of this product, please contact the sales office.Descripti.
The CXA1852N is an IC package that combines a π/2 phase shifter with a quadrature modulator.

📥 Download Datasheet

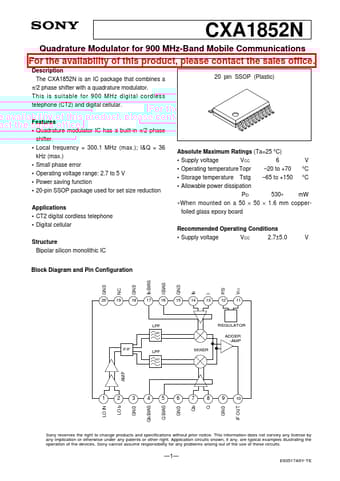

CXA1852N Datasheet Preview — Preview of CXA1852N PDF

Datasheet Specifications

Part number: CXA1852N
Manufacturer: Sony Corporation
File Size: 174.89 KB
Datasheet: CXA1852N_SonyCorporation.pdf
Description: Quadrature Modulator for 900 MHz-Band Mobile Communications

Features

* Quadrature modulator IC has a built-in π/2 phase shifter.
* Local frequency = 300.1 MHz (max. ); I&Q = 36 kHz (max. )
* Small phase error
* Operating voltage range: 2.7 to 5 V
* Power saving function
* 20-pin SSOP package used for set size reduction Ap

Applications

* CT2 digital cordless telephone
* Digital cellular Structure Bipolar silicon monolithic IC Block Diagram and Pin Configuration Ib BIAS I BIAS GND GND GND 20 pin SSOP (Plastic) Absolute Maximum Ratings (Ta=25 °C)
* Supply voltage VCC 6 V
* Operating temperature Topr
