CXA1853Q RGB Driver for LCD

Sony Corporation

CXA1853Q Description

CXA1853Q RGB Driver for LCD For the availability of this product, please contact the sales office..
The CXA1853Q is an RGB driver for LCD panels. Built-in RGB signal phase matching s.

CXA1853Q Features

* Built-in RGB signal phase matching sample-andhold circuit
* Effective frequency response (18MHz Typ. )
* Built-in gain and breakpoint variable 2-point γ compensation circuit
* Built-in side black generation circuit for 4:3/16:9 aspect conversion
* Built-in VC

CXA1853Q Applications

* Liquid crystal projectors
* Liquid crystal viewfinders
* Compact liquid crystal monitors 80 pin QFP (Plastic) Absolute Maximum Ratings (Ta = 25°C)
* Supply voltage VCC1 6 VCC2 15
* Input pin voltage VIN VCC1
* Operating temperature Topr
* 25

📥 Download Datasheet

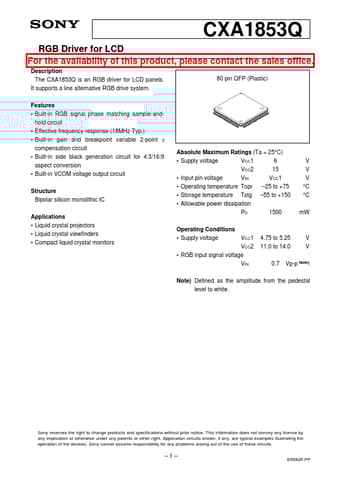

CXA1853Q Datasheet Preview — Preview of CXA1853Q PDF

Datasheet Details

Part number: CXA1853Q
Manufacturer: Sony Corporation
File Size: 758.67 KB
Datasheet: CXA1853Q_SonyCorporation.pdf
Description: RGB Driver for LCD
