CXA1854AR Datasheet - Sony Corporation

CXA1854AR Decoder/Driver/Timing Generator for Color LCD Panels

The CXA1854AR is an IC designed exclusively to drive color LCD panels LCX009AK/AKB/LCX005BK/ BKB. This IC greatly reduces the number of circuits and parts required to drive LCD panels by incorporating RGB decoder functions for video signals, driver functions, and a timing generator for driving panel.

CXA1854AR Features

* Color LCD panels LCX009AK/AKB/LCX005BK/BKB driver

* Both NTSC/PAL compatible

* Supports composite inputs, Y/C inputs and Y/color difference inputs

* Band-pass filter, trap and delay line

* Sharpness function

* 2-point γ compensation circuits

CXA1854AR Datasheet (1.32 MB)

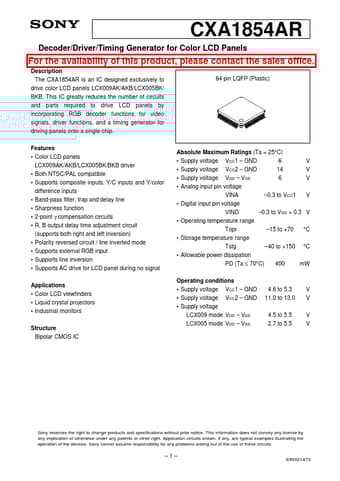

CXA1854AR Datasheet Preview — Preview of CXA1854AR PDF

Datasheet Details

Part number:

CXA1854AR

Manufacturer:

Sony Corporation

File Size:

1.32 MB

Description:

Decoder/driver/timing generator for color lcd panels.
