CXA2061S - Y/C/RGB/D for NTSC Color TVs

Product Overview

Sony Corporation

Datasheet Details

Part number	CXA2061S
Manufacturer	Sony Corporation
File Size	435.65 KB
Description	Y/C/RGB/D for NTSC Color TVs
Datasheet	CXA2061S Datasheet

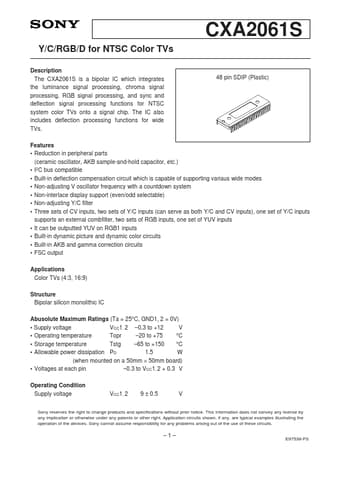

Additional preview pages of the CXA2061S datasheet.

Product details

Description

The CXA2061S is a bipolar IC which integrates the luminance signal processing, chroma signal processing, RGB signal processing, and sync and deflection signal processing functions for NTSC system color TVs onto a signal chip.

Features

Reduction in peripheral parts (ceramic oscillator, AKB sample-and-hold capacitor, etc. ).
I2C bus compatible.
Built-in deflection compensation circuit which is capable of supporting variaus wide modes.
Non-adjusting V oscillator frequency with a countdown system.
Non-interlace display support (even/odd selectable).
Non-adjusting Y/C filter.
Three sets of CV inputs, two sets of Y/C inputs (can serve as both Y/C and CV inputs), one set.
