CXA2069Q - S2-Compatible 7-Input 3-Output Audio/Video Switch

Product Overview

Sony Corporation

📥 Download Datasheet

CXA2069Q S2-Compatible 7-Input 3-Output Audio/Video Switch by Sony Corporation - Datasheet Preview — Datasheet preview – CXA2069Q

Datasheet Details

Part number	CXA2069Q
Manufacturer	Sony Corporation
File Size	445.47 KB
Description	S2-Compatible 7-Input 3-Output Audio/Video Switch
Datasheet	CXA2069Q Datasheet
Additional preview pages of the CXA2069Q datasheet.

Product details

Description

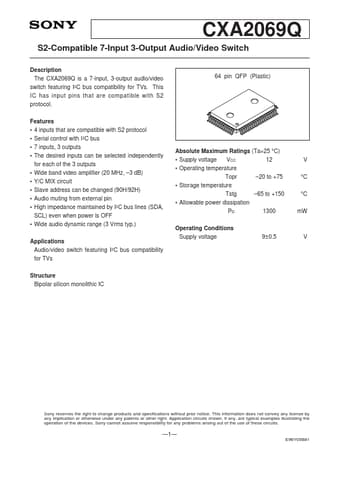

The CXA2069Q is a 7-input, 3-output audio/video switch featuring I2C bus compatibility for TVs.

Features

4 inputs that are compatible with S2 protocol.
Serial control with I2C bus.
7 inputs, 3 outputs.
The desired inputs can be selected independently for each of the 3 outputs.
Wide band video amplifier (20 MHz,.
3 dB).
Y/C MIX circuit.
Slave address can be changed (90H/92H).
Audio muting from external pin.
High impedance maintained by I2C bus lines (SDA, SCL) even when power is OFF.
Wide audio dynamic.
