CXA2060BS Description

www.DataSheet4U.com CXA2060BS 48 pin SDIP (Plastic) Y/C/RGB/D for PAL/NTSC/SECAM Color TVs For the availability of this product, please contact the .
The CXA2060BS is a bipolar IC which integrates the luminance signal processing, chroma signal processing, RGB signal processing, and sync and deflecti.

CXA2060BS Features

* Supports the I2C bus
* 1H delay line and SECAM decoder
* Supports NTSC/PAL-N/PAL-M systems with three crystal pins
* Deflection compensation circuit for support of various wide modes
* Count down system eliminates need for V oscillation frequency adjustment

CXA2060BS Applications

* Color TVs (4:3, 16:9) Structure Bipolar silicon monolithic IC Absolute Maximum Ratings (Ta = 25°C, GND1, 2 = 0V) V
* Supply voltage VCC1, 2
* 0.3 to +12
* Operating temperature Topr
* 20 to +75 °C
* Storage temperature Tstg
* 65 to +150 °C
* Allow

📥 Download Datasheet

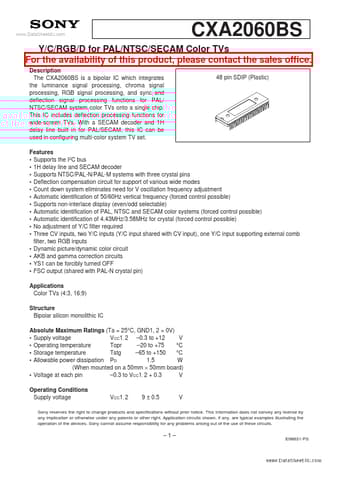

Preview of CXA2060BS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXA2060BS
Manufacturer
Sony
File Size
571.88 KB
Datasheet
CXA2060BS_Sony.pdf
Description
Y/C/RGB/D
