CXA2067S - Preamplifier for High-Resolution Computer Display

Product Overview

Sony Corporation

📥 Download Datasheet

CXA2067S Preamplifier for High-Resolution Computer Display by Sony Corporation - Datasheet Preview — Datasheet preview – CXA2067S

Datasheet Details

Part number	CXA2067S
Manufacturer	Sony Corporation
File Size	204.09 KB
Description	Preamplifier for High-Resolution Computer Display
Datasheet	CXA2067S Datasheet
Additional preview pages of the CXA2067S datasheet.

Product details

Description

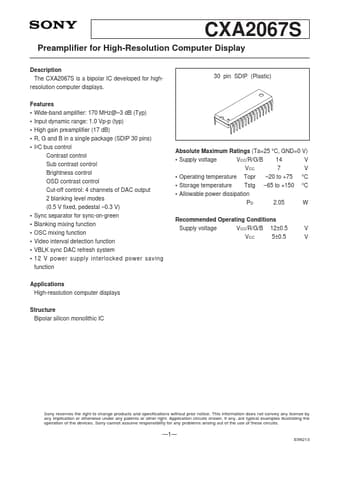

The CXA2067S is a bipolar IC developed for highresolution computer displays.

Features

Wide-band amplifier: 170 MHz@.
3 dB (Typ).
Input dynamic range: 1.0 Vp-p (typ).
High gain preamplifier (17 dB).
R, G and B in a single package (SDIP 30 pins).
I2C bus control Contrast control Sub contrast control Brightness control OSD contrast control Cut-off control: 4 channels of DAC output 2 blanking level modes (0.5 V fixed, pedestal.
0.3 V).
Sync separator for sync-on-green.
Blanking mixing function.
OS.
