CXA2067AS - Preamplifier for High-Resolution Computer Display

CXA2067AS Description

CXA2067AS Preamplifier for High-Resolution Computer Display .
The CXA2067AS is a bipolar IC developed for high-resolution computer displays. Wide-band amplifier: 170 MHz@. 3 dB (Typ).

CXA2067AS Features

* Wide-band amplifier: 170 MHz@
* 3 dB (Typ)
* Input dynamic range: 1.0 Vp-p (typ)
* High gain preamplifier (17 dB)
* R, G and B in a single package (SDIP 30 pins)
* I2C bus control Contrast control Sub contrast control Brightness control OSD contrast co

CXA2067AS Applications

* High-resolution computer displays Structure Bipolar silicon monolithic IC Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other right. Application circuits shown, if

📥 Download Datasheet

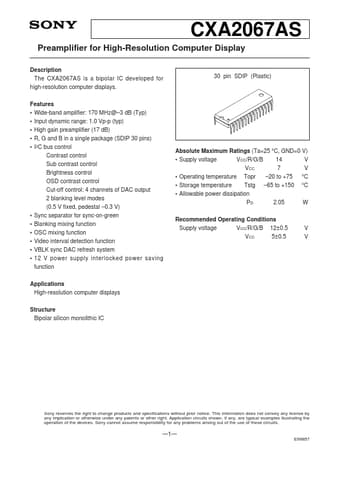

Preview of CXA2067AS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXA2067AS
Manufacturer
Sony Corporation
File Size
211.05 KB
Datasheet
CXA2067AS_SonyCorporation.pdf
Description
Preamplifier for High-Resolution Computer Display
