CXA3621GE Datasheet - Sony Corporation

Fingerprint Sensor

CXA3621GE Features

* Electrostatic capacitance type sensor (charge transfer method)

* Number of pixels: 192 × 128

* 317 DPI

* Low power consumption (50mW or less) ∗ When P/S: 18µW or less

* Single 3.0V power supply

* Sensor gain control: 3 bits

* S/N ratio improv

CXA3621GE General Description

The CXA3621GE is an electrostatic capacitance method fingerprint sensor. This monolithic IC integrates the sensor block, sense amplifier (3-bit gain adjustment), sample-andhold, output amplifier and output buffer needed to acquire fingerprint images, as well as the timing generator for determining t.

CXA3621GE Datasheet (113.27 KB)

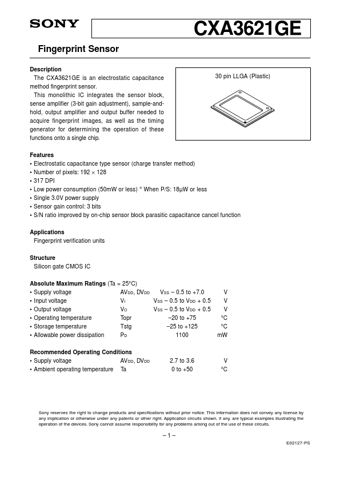

CXA3621GE Datasheet Preview — Preview of CXA3621GE PDF

Datasheet Details

Part number:

CXA3621GE

Manufacturer:

Sony Corporation

File Size:

113.27 KB

Description:

Fingerprint sensor.
