CXD1159AQ - Sync Signal Generator

Datasheet Summary

Description

The CXD1159AQ is a sync signal generator for consumer video cameras.

Features

  • Adapts to NTSC or PAL through mode switching.
  • Low power consumption.
  • Phase comparator and built-in inverter for active filter (Power supply according to inverter for filter).
  • Supports external synchronization Structure Silicon gate CMOS.

📥 Download Datasheet

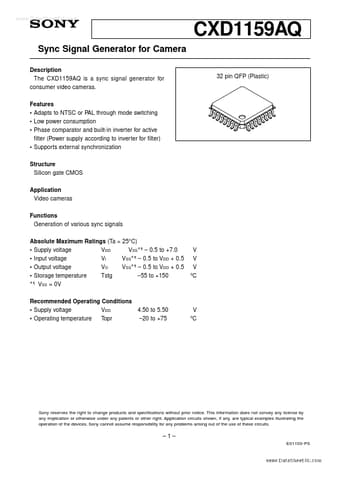

Datasheet preview – CXD1159AQ

Datasheet Details

Part number CXD1159AQ
Manufacturer Sony Corporation
File Size 487.05 KB
Description Sync Signal Generator
Datasheet download datasheet CXD1159AQ Datasheet
Additional preview pages of the CXD1159AQ datasheet.

📁 Similar Datasheet

  • CXD1151Q - Video Signal Processor (ETC)
  • CXD1156Q - (CXD1156Q/R) Timing Generator IC (Sony)
  • CXD1156R - (CXD1156Q/R) Timing Generator IC (Sony)
  • CXD1132Q - CMOS Time Code Generator / Reader (ETC)
  • CXD1133Q-321 - CMOS 8 Bit Microcomputer (ETC)
  • CXD1162P - Over Sampling Digital Filter LSI (Sony)
  • CXD101-106Q - CMOS Digital Delay Line (ETC)
  • CXD104-114Q - C-MOS MEMORY SEQUENCER (ETC)
  • CXD1088AQ - Over Sampling Digital Filter (Sony)
  • CXD1095AR - CMOS I/O Expander (ETC)
Other Datasheets by Sony Corporation
  • CXD1159Q - SYNC. SIGNAL GENERATOR FOR CAMERA
  • CXD1170M - 6-bit 40MSPS High Speed D/A Converter
  • CXD1171M - 8-bit 40MSPS High Speed D/A Converter
  • CXD1171M - 8-bit 50MSPS Video A/D Converter with Clamp Function
  • CXD1172AM - 6-bit 20MSPS Video A/D Converter (CMOS)
  • CXD1172AP - 6-bit 20MSPS Video A/D Converter (CMOS)
  • CXD1175AM - 8-bit 20MSPS Video A/D Converter (CMOS)
  • CXD1175AP - 8-bit 20MSPS Video A/D Converter (CMOS)

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com CXD1159AQ 32 pin QFP (Plastic) Sync Signal Generator for Camera Description The CXD1159AQ is a sync signal generator for consumer video cameras. Features • Adapts to NTSC or PAL through mode switching • Low power consumption • Phase comparator and built-in inverter for active filter (Power supply according to inverter for filter) • Supports external synchronization Structure Silicon gate CMOS Application Video cameras Functions Generation of various sync signals Absolute Maximum Ratings (Ta = 25°C) • Supply voltage VDD VSS∗1 – 0.5 to +7.0 • Input voltage VI VSS∗1 – 0.5 to VDD + 0.5 • Output voltage VO VSS∗1 – 0.5 to VDD + 0.5 • Storage temperature Tstg –55 to +150 ∗1 VSS = 0V Recommended Operating Conditions • Supply voltage VDD 4.50 to 5.
