CXD3300R Datasheet - Sony Corporation

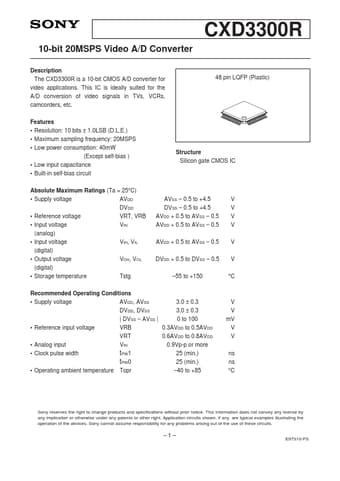

CXD3300R 10-bit 20MSPS Video A/D Converter

CXD3300R Features

* Resolution: 10 bits ± 1.0LSB (D.L.E.)

* Maximum sampling frequency: 20MSPS

* Low power consumption: 40mW (Except self-bias )

* Low input capacitance

* Built-in self-bias circuit Absolute Maximum Ratings (Ta = 25°C)

* Supply voltage AVDD DVDD

Datasheet Details

CXD3300R

Sony Corporation

220.38 KB

10-bit 20msps video a/d converter.
