ILX521AA Datasheet, Sensor, Sony Corporation

ILX521AA Features

  • Sensor
  • Number of effective pixels: 256 pixels
  • Pixel size: 14µm × 14µm (14µm pitch)
  • Built-in timing generator and clock driver
  • Built-in S/H circuit

PDF File Details

Part number:

ILX521AA

Manufacturer:

Sony Corporation

File Size:

114.18kb

Download:

📄 Datasheet

Description:

256-pixel ccd linear image sensor. The ILX521AA is a rectangular reduction type CCD linear image sensor designed for image scanner sensor. A built-in timing generator a

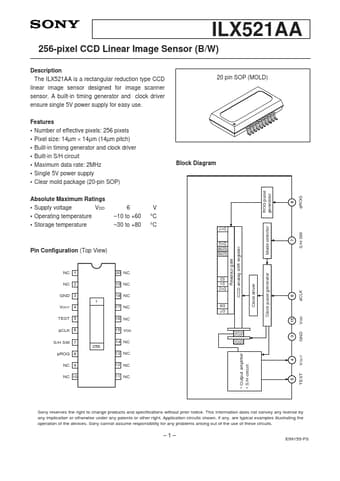

Datasheet Preview: ILX521AA 📥 Download PDF (114.18kb)
Page 2 of ILX521AA Page 3 of ILX521AA
