ILX524KA - 2700 pixel X 3 line CCD Linear Sensor

Sony Corporation

📥 Download Datasheet

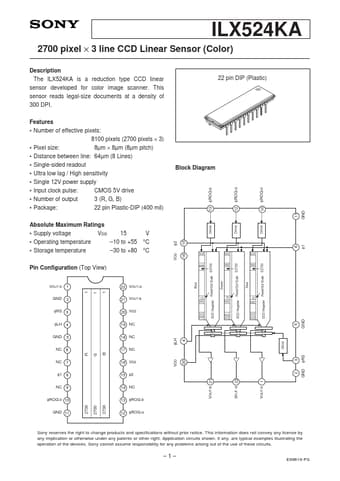

ILX524KA Datasheet Preview — Preview of ILX524KA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ILX524KA
Manufacturer	Sony Corporation
File Size	119.97 KB
Description	2700 pixel X 3 line CCD Linear Sensor
Datasheet	ILX524KA_SonyCorporation.pdf

ILX524KA Product details

Description

The ILX524KA is a reduction type CCD linear sensor developed for color image scanner.

Features

Number of effective pixels: 8100 pixels (2700 pixels × 3).
Pixel size: 8µm × 8µm (8µm pitch).
Distance between line: 64µm (8 Lines).
Single-sided readout.
Ultra low lag / High sensitivity.
Single 12V power supply.
Input clock pulse: CMOS 5V drive.
Number of output 3 (R, G, B).
Package: 22 pin Plastic-DIP (400 mil) Absolute Maximum Ratings.
Supply voltage VDD 15.
Operating temperature.
10 t.
