ICX262AQF Datasheet - Sony

Diagonal 8.933mm (Type 1/1.8) Frame Readout CCD Image Sensor

ICX262AQF Features

* Supports frame readout

* High horizontal and vertical resolution V

* Supports high frame rate readout mode: 30 frames/s, AF1 mode: 60 frames/s, 50 frames/s, AF2 mode: 120 frames/s, 100 frames/s

* Square pixel 4

* Horizontal drive frequency: 18MHz

ICX262AQF General Description

The ICX262AQF is a diagonal 8.933mm (Type 1 / 1 . 8 ) interline CCD solid-state image sensor with a square pixel array and 3.24M effective pixels. Frame readout allows all pixels' signals to be output independently within approximately 1/4.28 second. Also, number of vertical pixels decimation allows.

ICX262AQF Datasheet (407.11 KB)

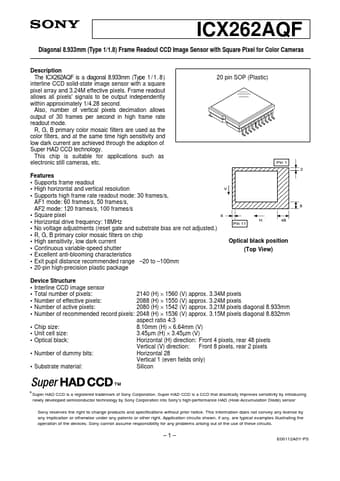

ICX262AQF Datasheet Preview — Preview of ICX262AQF PDF

Datasheet Details

Part number:

ICX262AQF

Manufacturer:

Sony

File Size:

407.11 KB

Description:

Diagonal 8.933mm (type 1/1.8) frame readout ccd image sensor.
