ICX267AL

Diagonal 8mm (Type 1/2) Progressive Scan CCD Image Sensor

ICX267AL Features

* an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still image without a mechanical shutter. High resolution and high low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors. This chip is suitable for applications

ICX267AL General Description

The ICX267AL is a diagonal 8mm (Type 1/2) interline CCD solid-state image sensor with a square pixel array and 1.45M effective pixels. Progressive scan allows all pixels' signals to be output independently. Also, the adoption of high frame rate readout mode supports 30 frames per second. This chip f.

ICX267AL Datasheet (274.23 KB)

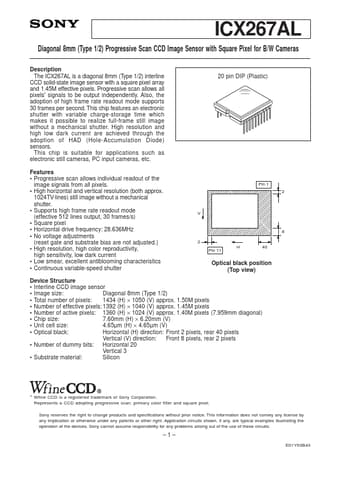

Preview of ICX267AL PDF

Datasheet Details

Part number:

ICX267AL

Manufacturer:

Sony

File Size:

274.23 KB

Description:

Diagonal 8mm (type 1/2) progressive scan ccd image sensor.
