ICX267AK

Diagonal 8mm (Type 1/2) Progressive Scan CCD Image Sensor

ICX267AK Features

* an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still image without a mechanical shutter. High resolution and high color reproductivity are achieved through the use of R, G, B primary color mosaic filters. Further, high sensitivity and low dark c

ICX267AK General Description

The ICX267AK is a diagonal 8mm (Type 1/2) interline CCD solid-state image sensor with a square pixel array and 1.45M effective pixels. Progressive scan allows all pixels' signals to be output independently. Also, the adoption of high frame rate readout mode supports 30 frames per second. This chip f.

ICX267AK Datasheet (316.11 KB)

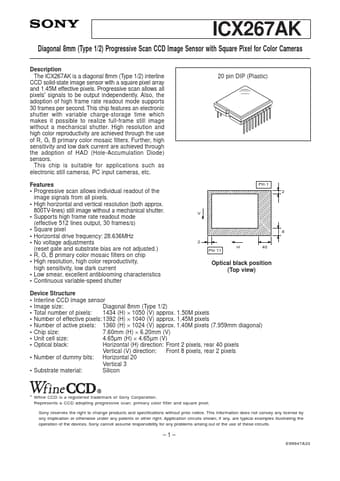

Preview of ICX267AK PDF

Datasheet Details

Part number:

ICX267AK

Manufacturer:

Sony

File Size:

316.11 KB

Description:

Diagonal 8mm (type 1/2) progressive scan ccd image sensor.
