ICX263AL

Diagonal 28.42mm (Type 1.8) Frame Readout CCD Image Sensor

ICX263AL Datasheet (223.62 KB)

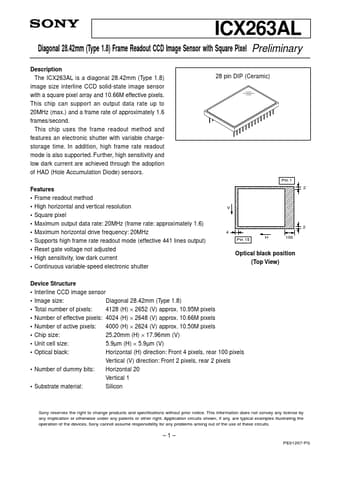

Preview of ICX263AL PDF

Datasheet Details

Part number:

ICX263AL

Manufacturer:

Sony

File Size:

223.62 KB

Description:

Diagonal 28.42mm (type 1.8) frame readout ccd image sensor.

ICX263AL Features

* an electronic shutter with variable chargestorage time. In addition, high frame rate readout mode is also supported. Further, high sensitivity and low dark current are achieved through the adoption of HAD (Hole Accumulation Diode) sensors. Features

* Frame readout method

* High horiz

ICX263AL General Description

The ICX263AL is a diagonal 28.42mm (Type 1.8) image size interline CCD solid-state image sensor with a square pixel array and 10.66M effective pixels. This chip can support an output data rate up to 20MHz (max.) and a frame rate of approximately 1.6 frames/second. This chip uses the frame readout me.
