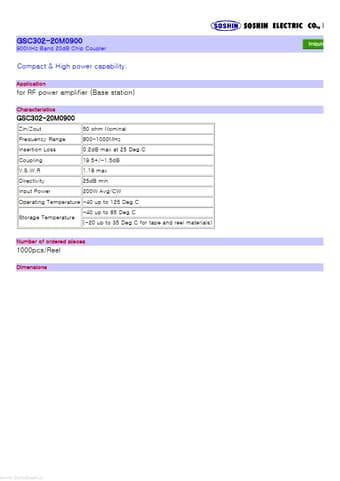

GSC302-20M0900 - 900MHz Band 20dB Chip Coupler
GSC302-20M0900 900MHz Band 20dB Chip Coupler Compact & High power capability.
Application for RF power amplifier (Base station) Characteristics GSC302-20M0900 Zin/Zout Frequency Range Insertion Loss Coupling V.S.W.R Directivity Input Power 50 ohm Nominal 800-1000MHz 0.2dB max at 25 Deg.C 19.5+ ⁄ -1.5dB 1.18 max 25dB min 200W Avg/CW Operating Temperature -40 up to 125 Deg.C Storage Temperature -40 up to 85 Deg.C (-20 up to 35 Deg.C for tape and reel materials) Number of ordered pieces 1000p
