GSC303-30M0900 Datasheet - Soshin

GSC303-30M0900 900MHz Band 30dB Chip Coupler

GSC303-30M0900 900MHz Band 30dB Chip Coupler Compact & High power capability. Application for RF power amplifier (Base station) Characteristics GSC303-30M0900 Zin/Zout Frequency Range Insertion Loss Coupling V.S.W.R Directivity Input Power 50 ohm Nominal 800-1000MHz 0.2dB max at 25 Deg.C 30.3+ ⁄ -1.5dB 1.18 max 20dB min 200W Avg/CW Operating Temperature -40 up to 125 Deg.C Storage Temperature -40 up to 85 Deg.C (-20 up to 35 Deg.C for tape and reel materials) Number of ordered pieces 1000p.

GSC303-30M0900 Datasheet (120.59 KB)

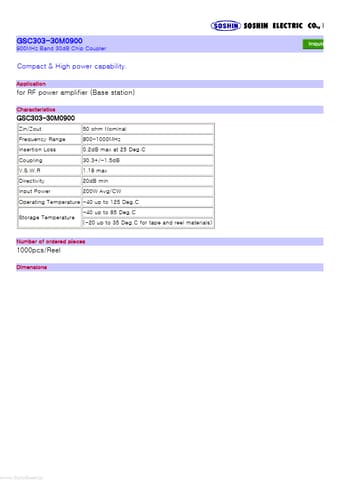

Preview of GSC303-30M0900 PDF
GSC303-30M0900 Datasheet Preview Page 2 GSC303-30M0900 Datasheet Preview Page 3

Datasheet Details

Part number:

GSC303-30M0900

Manufacturer:

Soshin

File Size:

120.59 KB

Description:

900mhz band 30db chip coupler.
