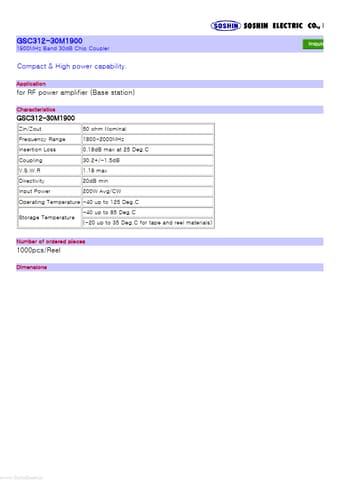

GSC312-30M1900 - 1900MHz Band 30dB Chip Coupler
GSC312-30M1900 1900MHz Band 30dB Chip Coupler Compact & High power capability.
Application for RF power amplifier (Base station) Characteristics GSC312-30M1900 Zin/Zout Frequency Range Insertion Loss Coupling V.S.W.R Directivity Input Power 50 ohm Nominal 1800-2000MHz 0.18dB max at 25 Deg.C 30.2+ ⁄ -1.5dB 1.18 max 20dB min 200W Avg/CW Operating Temperature -40 up to 125 Deg.C Storage Temperature -40 up to 85 Deg.C (-20 up to 35 Deg.C for tape and reel materials) Number of ordered pieces 10
