CS1420 - Current Sense Transformer

📥 Download Datasheet

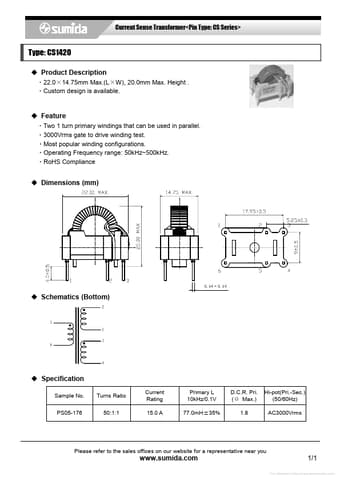

Preview of CS1420 PDF

Datasheet Details

Part number
CS1420
Manufacturer
Sumida
File Size
189.18 KB
Datasheet
CS1420_Sumida.pdf
Description
Current Sense Transformer

CS1420 Product details

Description

22.0×14.75mm Max.(L×W), 20.0mm Max. Feature Two 1 turn primary windings that can be used in parallel.3000Vrms gate to drive winding test.Most popular winding configurations.Operating Frequency range: 50kHz~500kHz.RoHS Compliance Dimensions (mm) 0.64×0.64 Schematics (Bottom) 2 1 5 6 3 4 Specification Sample No.PS05-176 Turns Ratio 50:1:1 Current Rating 15.0 A Primary L 10kHz/0.1V 77.0mH±35% D.C.R.Pri.(Ω Max.) 1.8 Hi-pot(Pri
