CS1404A8 Datasheet, Mosfet, Huajing Microelectronics

CS1404A8 Features

  • Mosfet l Fast Switching l Low ON Resistance(Rdson≤4.5mΩ) l Low Gate Charge (Typical Data:103.6nC) l Low Reverse transfer capacitances(Typical:170pF) l 100% Single Pulse avalanche energy Test

PDF File Details

Part number:

CS1404A8

Manufacturer:

Huajing Microelectronics

File Size:

405.29kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS1404 A8, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conductio

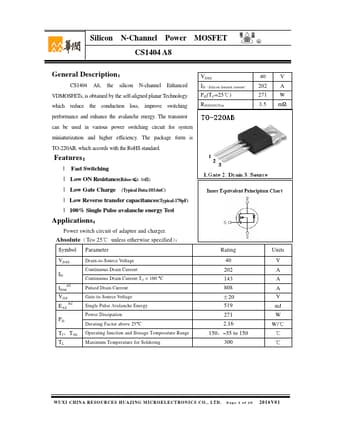

Datasheet Preview: CS1404A8 📥 Download PDF (405.29kb)
Page 2 of CS1404A8 Page 3 of CS1404A8

CS1404A8 Application

  • Applications Power switch circuit of adaptor and charger. Absolute(Tc= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1 VGS EAS a
