CS140N08AR Datasheet, Mosfet, CR Micro

CS140N08AR Features

  • Mosfet l Fast Switching l Low ON Resistance(Rdson≤6mΩ) l Low Gate Charge (Typical Data:87.5nC) l Low Reverse transfer capacitances(Typical:291pF) l 100% Single Pulse avalanche energy Test

PDF File Details

Part number:

CS140N08AR

Manufacturer:

CR Micro

File Size:

942.92kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS140N08 AR, the silicon N-channel Enhanced VDMOSFETs, is obtained by advanced Trench Technology which reduce the conduction loss, i

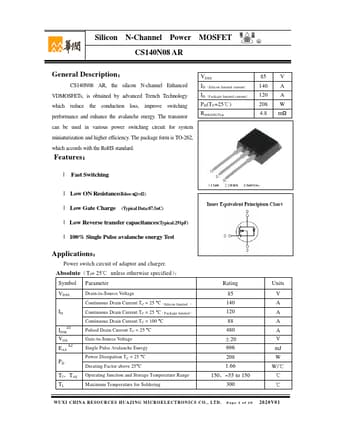

Datasheet Preview: CS140N08AR 📥 Download PDF (942.92kb)
Page 2 of CS140N08AR Page 3 of CS140N08AR

CS140N08AR Application

  • Applications Power switch circuit of adaptor and charger. Absolute(TJ= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1 VGS EAS a2
