CS14N25A0R Datasheet, Mosfet, CR Micro

CS14N25A0R Features

• Mosfet l Fast Switching l Low ON Resistance(Rdson≤0.25Ω) l Low Gate Charge (Typical Data:22.7nC) l Low Reverse transfer capacitances(Typical:13pF) l 100% Single Pulse avalanche energy Test A

PDF File Details

Part number:

CS14N25A0R

Manufacturer:

CR Micro

File Size:

355.42kb

Download:

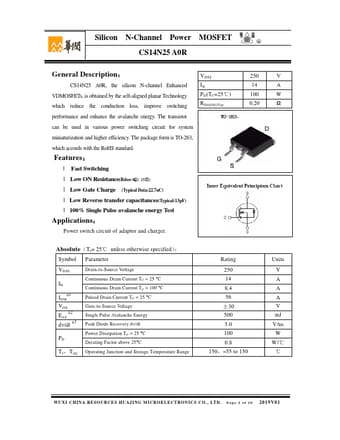

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS14N25 A0R, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction

CS14N25A0R Application

• Applications Power switch circuit of adaptor and charger. 250 V 14 A 100 W 0.20 Ω Absolute（TJ= 25℃ unless otherwise specified）： Symbol Pa
