CS14N06AQ2-1

Silicon N-Channel Power MOSFET

CS14N06AQ2-1 Features

* l Fast Switching l Low ON Resistance(Rdson≤45mΩ) l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. Absolute（Tj= 25℃ unless otherwise specified） Symbol Parameter VDSS ID IDMa1 VGS EAS a2 PD T

CS14N06AQ2-1 General Description

CS14N06 AQ2-1, the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. This device is suitable for use as a load switch and PWM applications.. The package form .

CS14N06AQ2-1 Datasheet (451.90 KB)

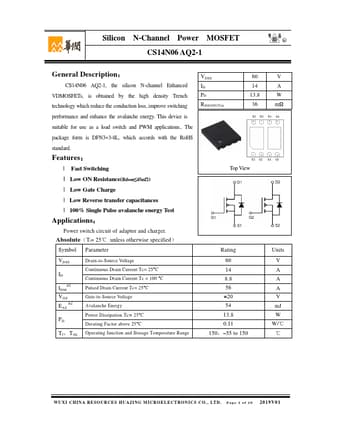

Preview of CS14N06AQ2-1 PDF

Datasheet Details

Part number:

CS14N06AQ2-1

Manufacturer:

CR Micro

File Size:

451.90 KB

Description:

Silicon n-channel power mosfet.
