CS14N25A8R Datasheet, Mosfet, CR Micro

CS14N25A8R Features

• Mosfet
• Fast Switching
• Low ON Resistance(Rdson≤0.25Ω)
• Low Gate Charge (Typical Data:22.7nC)
• Low Reverse transfer capacitances(Typical:13pF)

PDF File Details

Part number:

CS14N25A8R

Manufacturer:

CR Micro

File Size:

670.63kb

Download:

📄 Datasheet

Description:

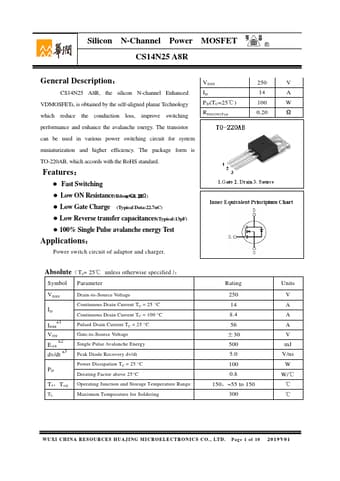

Silicon n-channel power mosfet. CS14N25 A8R, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction

CS14N25A8R Application

• Applications Power switch circuit of adaptor and charger. 250 V 14 A 100 W 0.20 Ω Absolute（TJ= 25℃ unless otherwise specified）： Symbol Pa
