1N4948, 1N4942 - FAST RECOVERY RECTIFIER DIODES

1N4948 Description

1N4942 - 1N4948 FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 200- 1000V CURRENT: 1.0 A .

1N4948 Features

* ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents Mechanical Data ! Case: D O - 4 1 Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.34 grams (app

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4948, 1N4942. Please refer to the document for exact specifications by model.

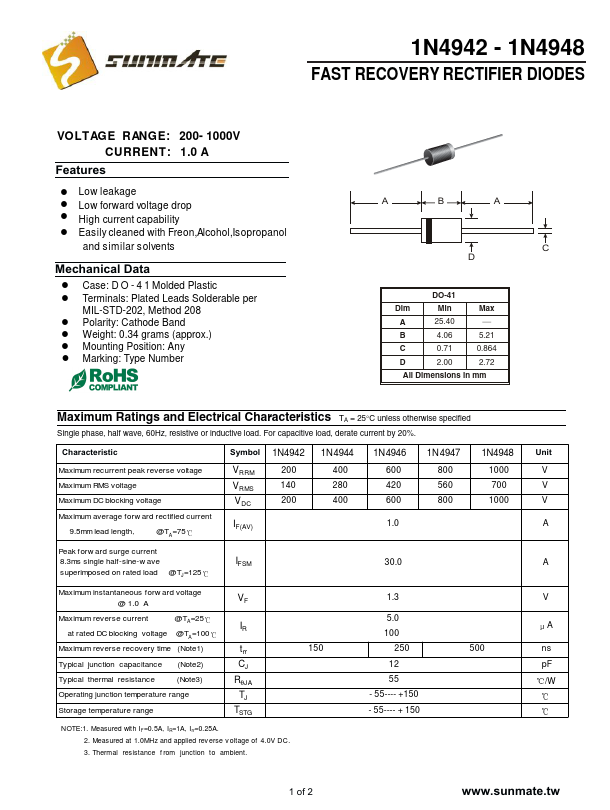

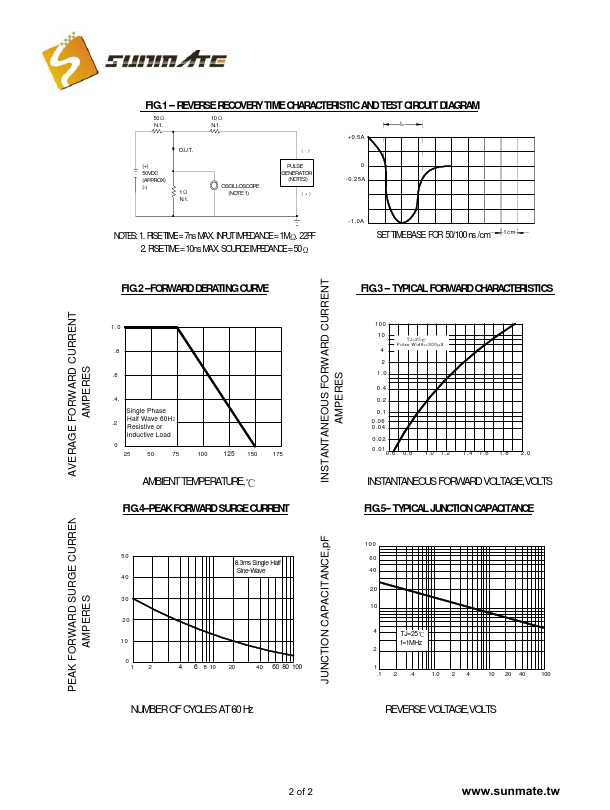

datasheet Preview Page 2

Datasheet Details

Part number
1N4948, 1N4942
Manufacturer
Sunmate
File Size
404.14 KB
Datasheet
1N4942-Sunmate.pdf
Description
FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: 1N4948, 1N4942.
Please refer to the document for exact specifications by model.
