D5SB100, D5SB10 SINGLE PHASE GLASSPASSIVATED SIP BRIDGE RECTIFIER

D5SB100 Description

D5SB10-D5SB100 SINGLE PHASE GLASSPASSIVATED SIP BRIDGE RECTIFIER VOLTAGE RANGE: 100 - 1000V CURRENT: 6 A .

D5SB100 Features

* ! Glass passivated chip junctions ! Plastic Package has Underwriters ! Laboratory Flammability Classification 94V-0 ! High current capacity with small package ! Superior thermal conductivity Mechanical Data ! Terminal: Plated leads solderable per MIL-STD 202E, method 208C ! Case: UL-94 Class V-O rec

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: D5SB100, D5SB10. Please refer to the document for exact specifications by model.

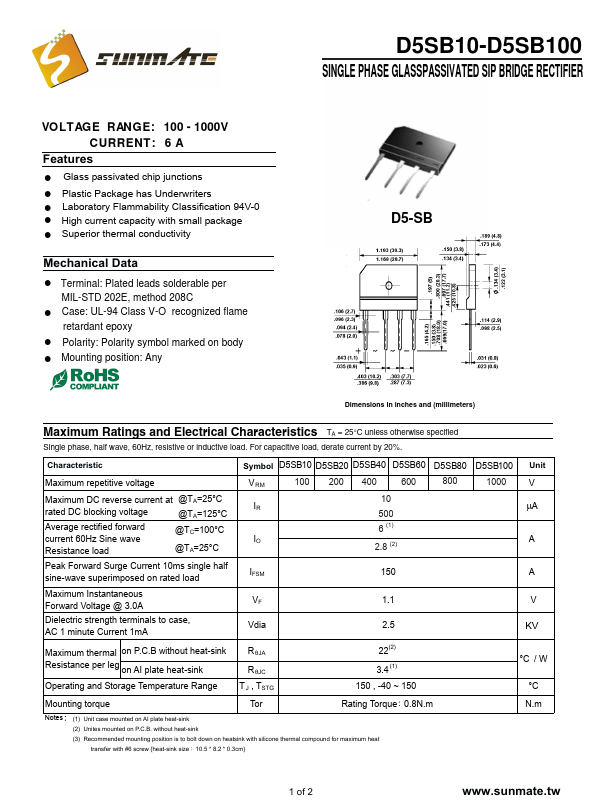

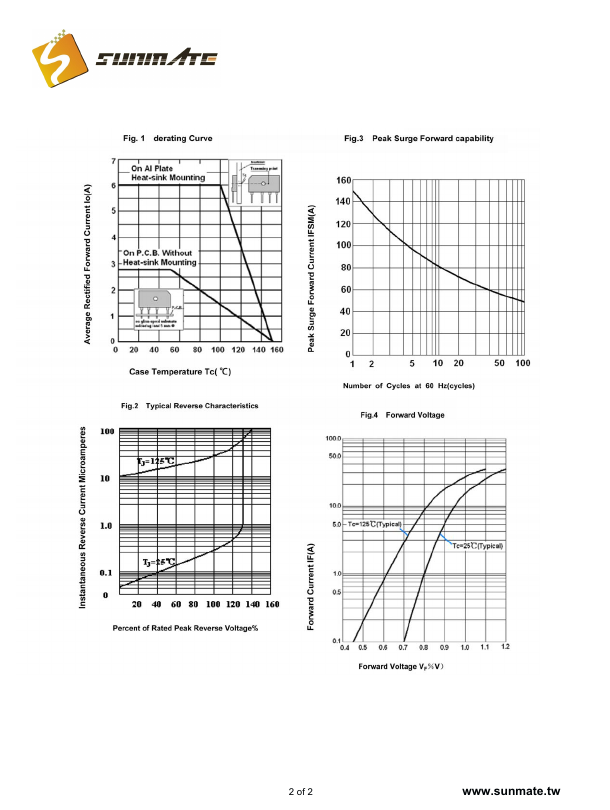

datasheet Preview Page 2

Datasheet Details

Part number
D5SB100, D5SB10
Manufacturer
Sunmate
File Size
959.06 KB
Datasheet
D5SB10-Sunmate.pdf
Description
SINGLE PHASE GLASSPASSIVATED SIP BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: D5SB100, D5SB10.
Please refer to the document for exact specifications by model.
