ESJA08-12 - HIGH VOLTAGE RECTIFIER DIODES

ESJA08-12 Description

VOLTAGE RANGE: 12 KV CURRENT: 5.0 m A .

ESJA08-12 Applications

* X light Power supply Laser Voltage doubler circuit Microwave emission power ESJA08-12 HIGH VOLTAGE RECTIFIER DIODES Outline Drawings : mm Lot No. Cathode Mark o 2.5 o 0.5 27 min. 6.5 27 min. Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified Items Symbol

📥 Download Datasheet

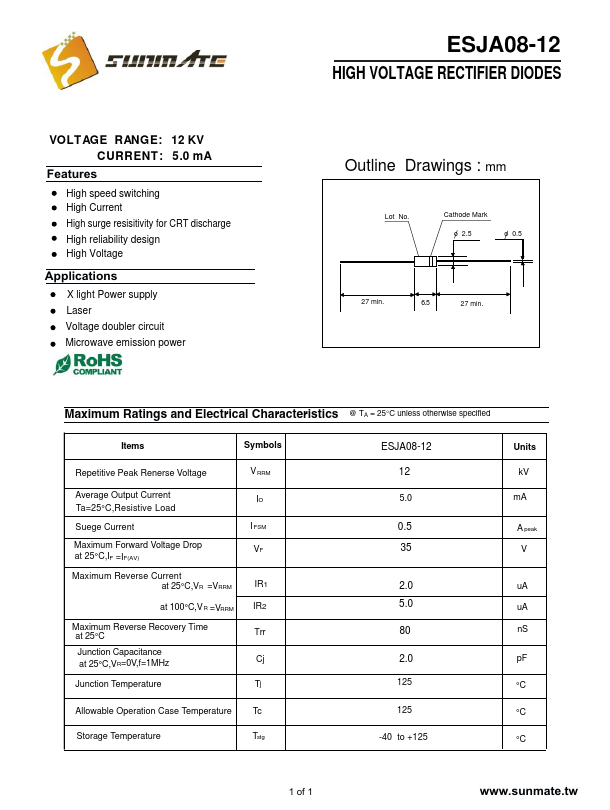

Preview of ESJA08-12 PDF

Datasheet Details

Part number
ESJA08-12
Manufacturer
Sunmate
File Size
65.35 KB
Datasheet
ESJA08-12-Sunmate.pdf
Description
HIGH VOLTAGE RECTIFIER DIODES
