ESJA09-12 - HIGH VOLTAGE RECTIFIER DIODES

ESJA09-12 Description

VOLTAGE RANGE: 12KV CURRENT: 5 m A .

ESJA09-12 Applications

* Rectification for CRT display monitor high voltage power supply (FBT:Flyback Transformer) ESJA09-12 HIGH VOLTAGE RECTIFIER DIODES Outline Drawings : mm Lot No. Cathode Mark o 2.5 o 0.5 27 min. 10 27 min. Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified

📥 Download Datasheet

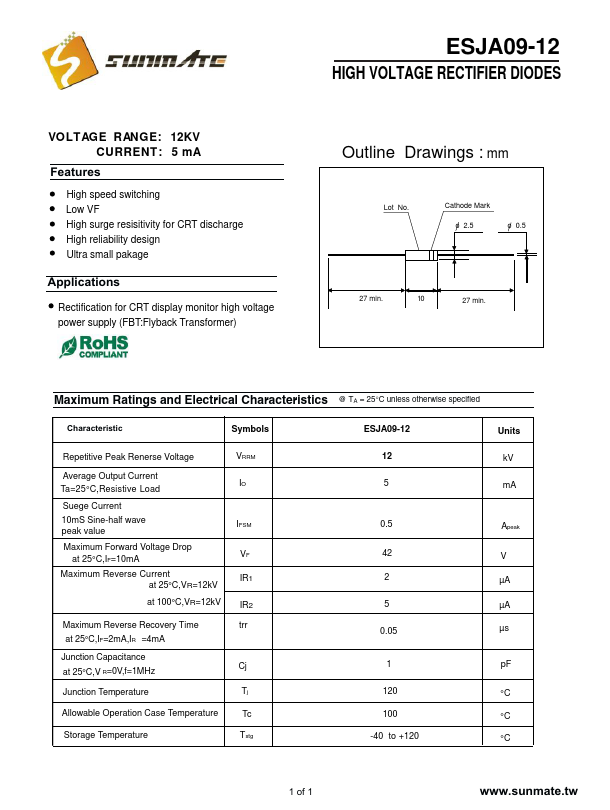

Preview of ESJA09-12 PDF

Datasheet Details

Part number
ESJA09-12
Manufacturer
Sunmate
File Size
70.48 KB
Datasheet
ESJA09-12-Sunmate.pdf
Description
HIGH VOLTAGE RECTIFIER DIODES
