ESJA19-10 - HIGH VOLTAGE RECTIFIER DIODES

ESJA19-10 Description

ESJA19-10 HIGH VOLTAGE RECTIFIER DIODES VOLTAGE RANGE: 10KV CURRENT: 5.0m A .

ESJA19-10 Applications

* Rectification for CRT display monitor high voltage power supply (FBT: Flyback Transformer) Outline Drawings Lot No. Cathode Mark o 2.5 o 0.5 27 min. 10 27 min. Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Characteristic Repetitive Peak Renerse Voltage

📥 Download Datasheet

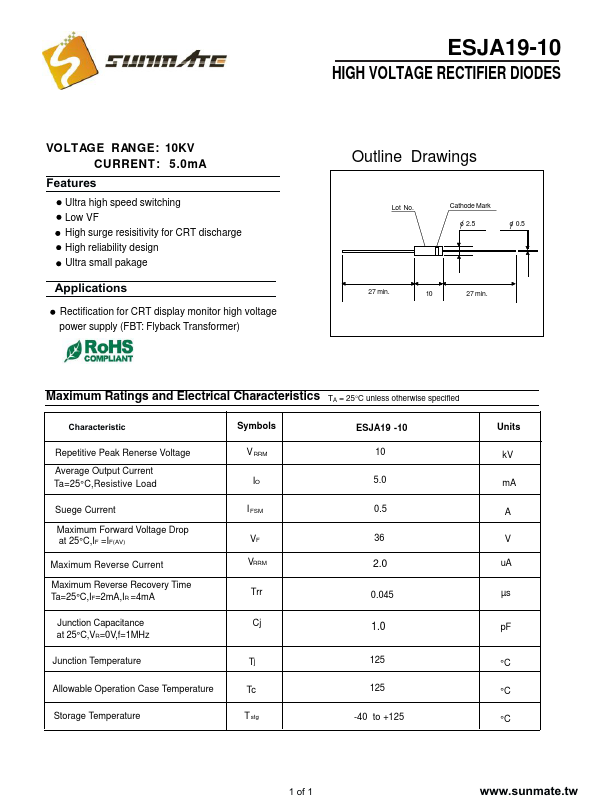

Preview of ESJA19-10 PDF

Datasheet Details

Part number
ESJA19-10
Manufacturer
Sunmate
File Size
74.54 KB
Datasheet
ESJA19-10-Sunmate.pdf
Description
HIGH VOLTAGE RECTIFIER DIODES
