ESJA18-08 - High voltage diode

ESJA18-08 Description

ESJA18-08 HIGH VOLTAGE RECTIFIER DIODES VOLTAGE RANGE: 8 KV CURRENT: 5 m A .

ESJA18-08 Applications

* Rectification for CRT display monitor high voltage power supply (FBT:Flyback Transformer) Outline Drawings Lot No. Cathode Mark o 2.5 o 0.5 27 min. 6.5 27 min. Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified Characteristic Repetitive Peak Reverse Voltag

📥 Download Datasheet

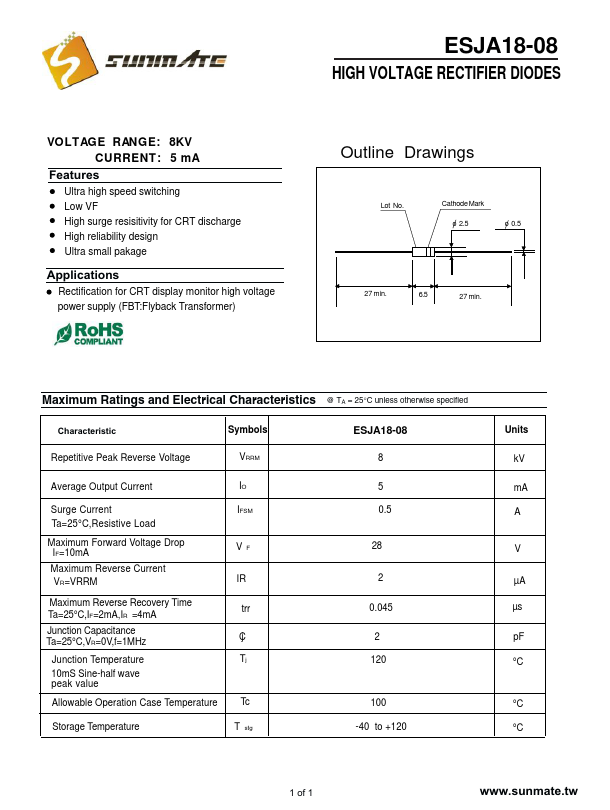

Preview of ESJA18-08 PDF

Datasheet Details

Part number
ESJA18-08
Manufacturer
Sunmate
File Size
61.77 KB
Datasheet
ESJA18-08-Sunmate.pdf
Description
High voltage diode
