ESJA08-10 - HIGH VOLTAGE RECTIFIER DIODES

ESJA08-10 Description

VOLTAGE RANGE: 10 KV CURRENT: 5.0 m A .

ESJA08-10 Applications

* X light Power supply Laser Voltage doubler circuit Microwave emission power ESJA08-10 HIGH VOLTAGE RECTIFIER DIODES Outline Drawings : mm Lot No. Cathode Mark o 2.5 o 0.5 27 min. 6.5 27 min. Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Items Symbols

📥 Download Datasheet

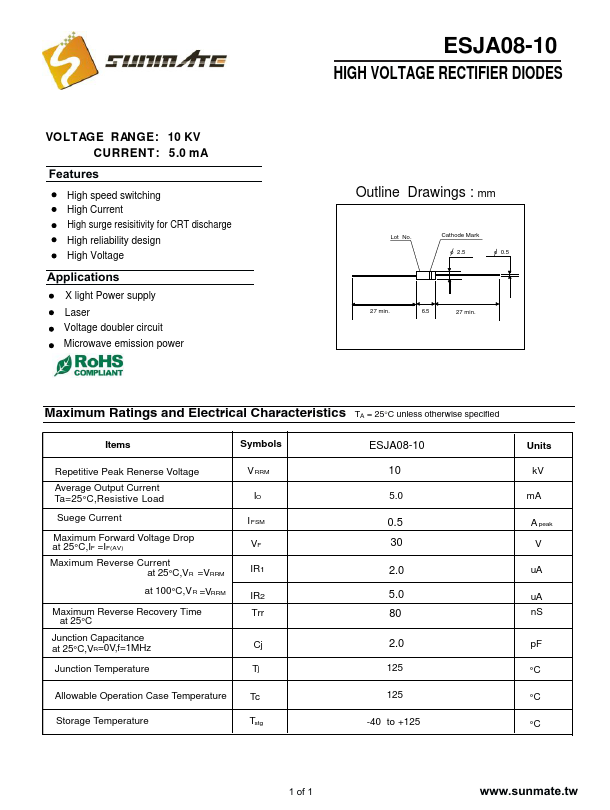

Preview of ESJA08-10 PDF

Datasheet Details

Part number
ESJA08-10
Manufacturer
Sunmate
File Size
66.63 KB
Datasheet
ESJA08-10-Sunmate.pdf
Description
HIGH VOLTAGE RECTIFIER DIODES
