FFM302, FFM301 SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

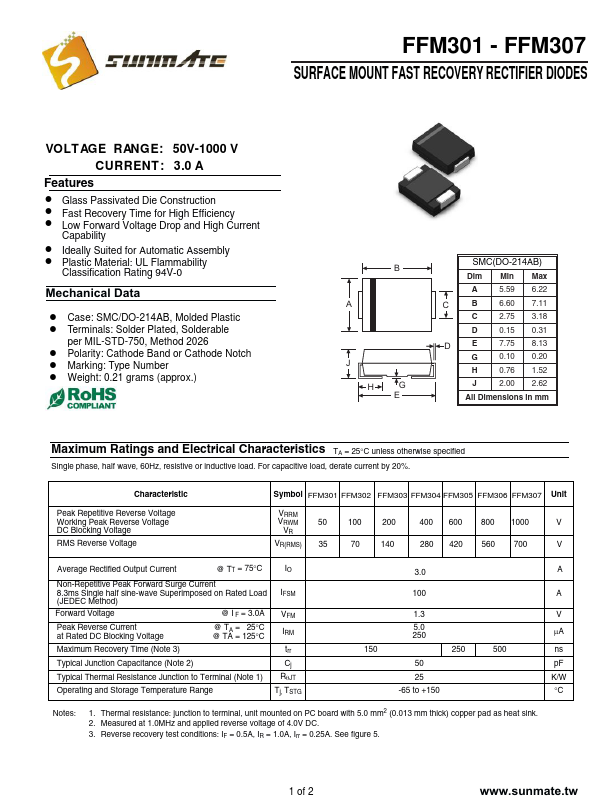

📥 Download Datasheet Datasheet Preview Page 1

Description

FFM301 - FFM307 SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50V-1000 V CURRENT: 3.0 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FFM302, FFM301. Please refer to the document for exact specifications by model.

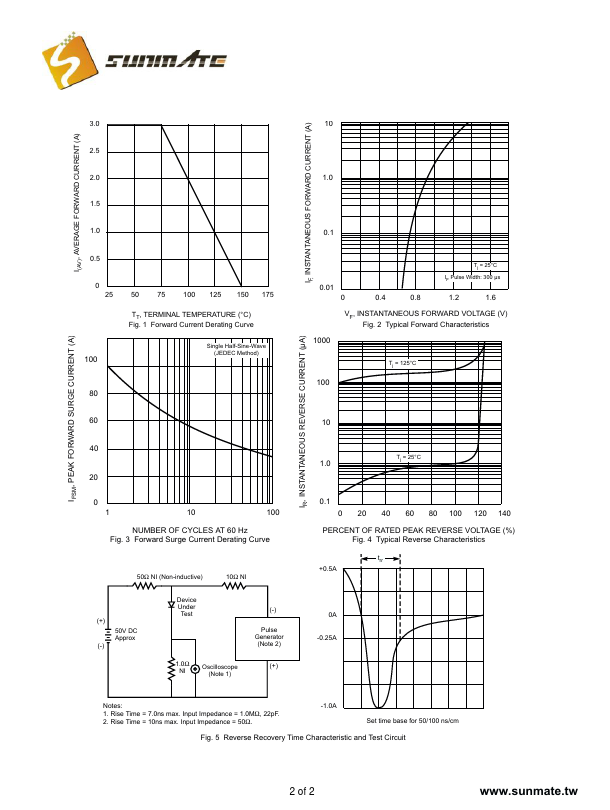

datasheet Preview Page 2

Datasheet Specifications

Part number
FFM302, FFM301
Manufacturer
Sunmate
File Size
107.84 KB
Datasheet
FFM301-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: FFM302, FFM301.
Please refer to the document for exact specifications by model.

Features

* ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMC/DO-214AB, Molded Plastic ! Terminals
