TSR-3309 Datasheet - Suntan

TSR-3309 Round Trimming Potentiometer

Round Trimming Potentiometer 3309 9mm Suntan ® TSR-3309 ▓ // ▓ (Single Turn/ Cermet/ Industrial) ▓ 2 ▓ (2 Terminal Styles) Electrical Characteristics Standard Resistance Range Resistance Tolerance Absolute Minimum Resistance Contact Resistance Variation Resistance Adjustment Angle 10Ω - 2MΩ ±30% std 1% max (≤2K=30Ω) 3% max Essentially infinite 235° nom Common Dimensions Top/Bottom Adjust Common Dimensions TSR-3309P TSR-3309P-3 Both Sides Adjust Hex Silde Adjust Common Dime.

TSR-3309 Datasheet (859.25 KB)

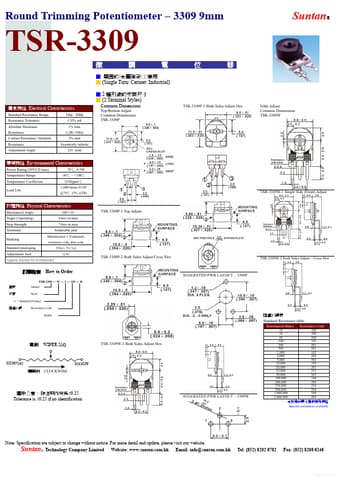

TSR-3309 Datasheet Preview — Preview of TSR-3309 PDF

Datasheet Details

Part number:

TSR-3309

Manufacturer:

Suntan

File Size:

859.25 KB

Description:

Round trimming potentiometer.
