TSR-3318 Datasheet - Suntan

TSR-3318 Round Trimming Potentiometer

Round Trimming Potentiometer 3318 6mm Suntan ® TSR-3318 ▓ /// ▓ (Single Turn/ Phenolic/ Industrial/ Sealed) ▓ 2 ▓ (2 Terminal Styles) Electrical Characteristics Standard Resistance Range Resistance Tolerance Contact Resistance Variation Resistance Adjustment Angle 100Ω - 1MΩ ±30% 10% max Infinite 210°±20° TSR-3318K FRONT VIEW Environmental Characteristics 100-500KΩ 50V Power Rating Temperature Range Temperature Coefficient Load.

TSR-3318 Datasheet (605.40 KB)

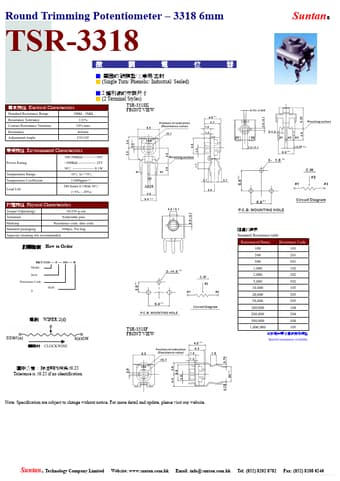

Preview of TSR-3318 PDF

Datasheet Details

Part number:

TSR-3318

Manufacturer:

Suntan

File Size:

605.40 KB

Description:

Round trimming potentiometer.
