TSR-3361 Datasheet - Suntan

TSR-3361 Square SMD Trimming Potentiometer

Square SMD Trimming Potentiometer 3361-1/4’’ Suntan ® TSR-3361 Electrical Characteristics Standard Resistance Range Resistance Tolerance Absolute Minimum Resistance Contact Resistance Variation Adjustability Voltage Resistance Resolution Insulation Resistance Dielectric Strength Sea Level 80,000 Feet Adjustment Angle 900 vac 350 vac 240 nom 。 Common Dimensions 10Ω - 2MΩ TSR-3361P (see standard resistance table) ±10% std (tighter tolerance available) 1% or 2 ohms (whichever is gr.

TSR-3361_Suntan.pdf

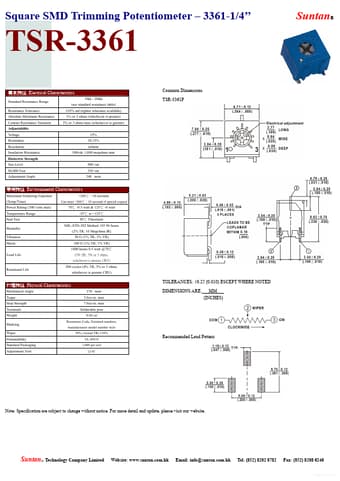

TSR-3361 Datasheet Preview — Preview of TSR-3361 PDF

Datasheet Details

Part number:

TSR-3361

Manufacturer:

Suntan

File Size:

916.98 KB

Description:

Square smd trimming potentiometer.
