SSW60R070S2E - 600V N-Channel Super-Junction MOSFET

Product Overview

Datasheet Details

Part number	SSW60R070S2E
Manufacturer	Super Semiconductor
File Size	702.52 KB
Description	600V N-Channel Super-Junction MOSFET
Datasheet	SSW60R070S2E Datasheet

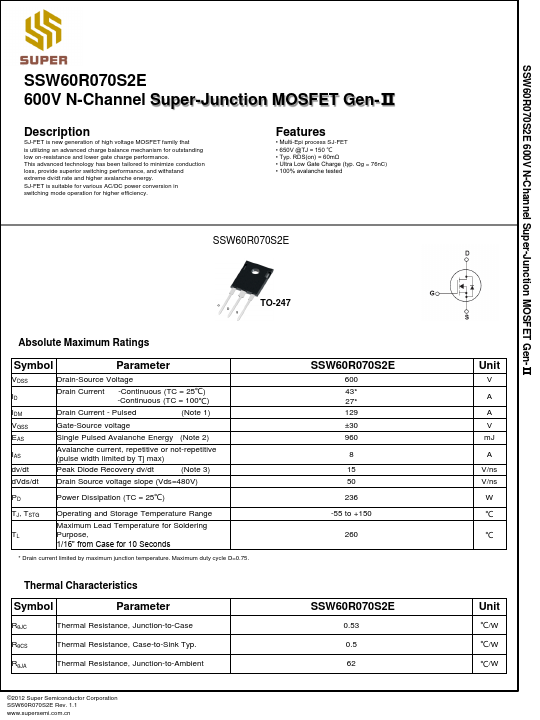

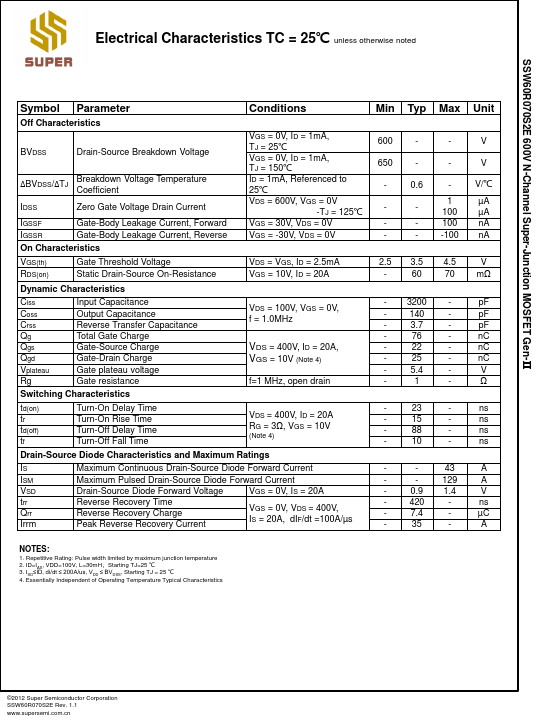

Additional preview pages of the SSW60R070S2E datasheet.

Product details

Description

SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance.

Features

Multi-Epi process SJ-FET.
650V @TJ = 150 ℃.
Typ. RDS(on) = 60mΩ.
Ultra Low Gate Charge (typ. Qg = 76nC).
100% avalanche tested SSW60R070S2E TO-247 Absolute Maximum Ratings Symbol Parameter VDSS ID IDM VGSS EAS IAS dv/dt Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Continuous (TC = 100℃) Drain Current - Pulsed (Note 1) Gate-Source voltage Single Pulsed Avalanche Energy (Note 2) Avalanche current, repetitive or not-repetitive.
