SSW90R240S2 - 900V N-Channel Super-Junction MOSFET

Product Overview

Datasheet Details

Part number	SSW90R240S2
Manufacturer	Super Semiconductor
File Size	973.31 KB
Description	900V N-Channel Super-Junction MOSFET
Datasheet	SSW90R240S2 Datasheet

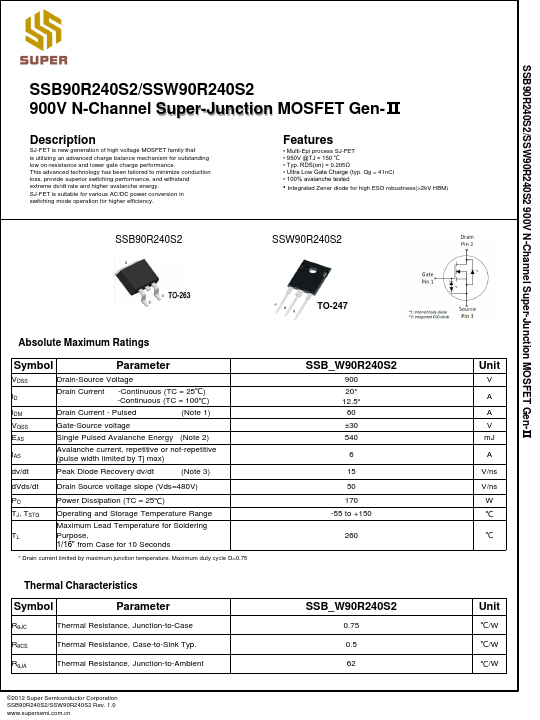

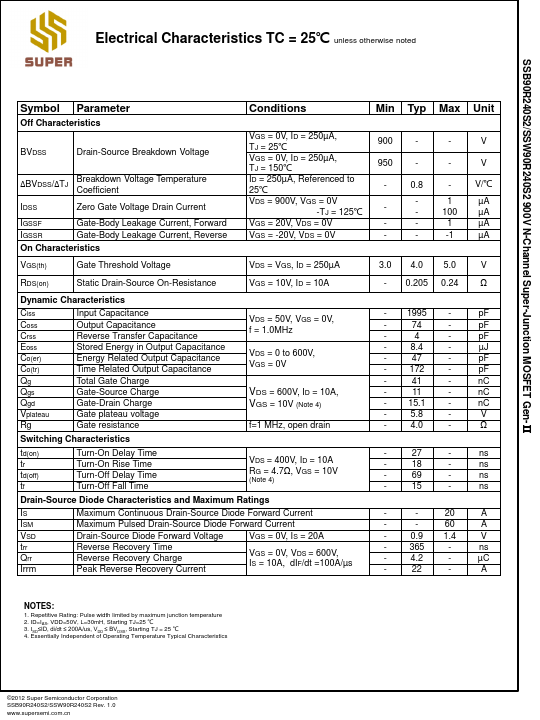

Additional preview pages of the SSW90R240S2 datasheet.

Product details

Description

SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance.

Features

Multi-Epi process SJ-FET.
950V @TJ = 150 ℃.
Typ. RDS(on) = 0.205Ω.
Ultra Low Gate Charge (typ. Qg = 41nC).
100% avalanche tested.
Integrated Zener diode for high ESD robustness(>2kV HBM) SSB90R240S2 SSW90R240S2 Absolute Maximum Ratings Symbol Parameter VDSS ID IDM VGSS EAS IAS Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Continuous (TC = 100℃) Drain Current - Pulsed (Note 1) Gate-Source voltage Single Pulsed Avalanc.
