HV3137 - 64-Channel Serial To Parallel Converter With Open Drain Outputs

Datasheet Summary

Description

The HV31 is a low voltage serial to high voltage parallel converter with open drain outputs.

It has been designed especially for use as a driver for electrostatic printers.

This device consists of a 64-bit shift register, 64 latches, latch enable (LE), and output enable (OE).

Features

  • HVCMOS technology ® General.

📥 Download Datasheet

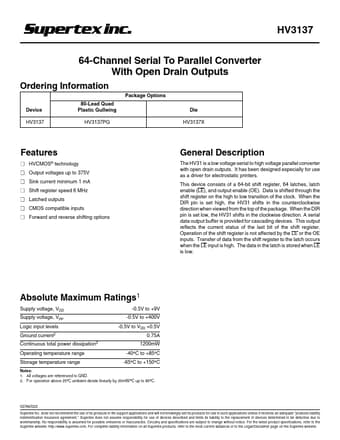

Datasheet preview – HV3137

Datasheet Details

Part number HV3137
Manufacturer Supertex Inc
File Size 447.41 KB
Description 64-Channel Serial To Parallel Converter With Open Drain Outputs
Datasheet download datasheet HV3137 Datasheet
Additional preview pages of the HV3137 datasheet.

📁 Similar Datasheet

Other Datasheets by Supertex Inc
  • HV310 - Inrush Current Limiter Controllers
  • HV311 - Hot Swap Controller
  • HV312 - Sequencing Hotswap Controllers
  • HV300 - Inrush Current Limiter Controllers
  • HV301 - Hotswap/ Controllers with Circuit Breaker
  • HV302 - Sequencing Hotswap Controllers
  • HV3418 - 64-Channel Serial to Parallel Converter
  • HV3922 - High Voltage PIN Diode Driver

Full PDF Text Transcription

Click to expand full text
HV3137 64-Channel Serial To Parallel Converter With Open Drain Outputs Ordering Information Package Options Device HV3137 80-Lead Quad Plastic Gullwing HV3137PG Die HV3137X Features ■ HVCMOS technology ® General Description The HV31 is a low voltage serial to high voltage parallel converter with open drain outputs. It has been designed especially for use as a driver for electrostatic printers. This device consists of a 64-bit shift register, 64 latches, latch enable (LE), and output enable (OE). Data is shifted through the shift register on the high to low transition of the clock. When the DIR pin is set high, the HV31 shifts in the counterclockwise direction when viewed from the top of the package. When the DIR pin is set low, the HV31 shifts in the clockwise direction.
