VN2406

N-Channel Vertical DMOS FETs

VN2406 Features

* Free from secondary breakdown

* Low power drive requirement

* Ease of paralleling

* Low CISS and fast switching speeds

* Excellent thermal stability

* Integral source-drain diode

* High input impedance and high gain Applications

VN2406 General Description

This enhancement-mode (normally-off) transistor utilizes a vertical DMOS structure and Supertex’s well-proven, silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive temperature coef.

VN2406 Datasheet (550.13 KB)

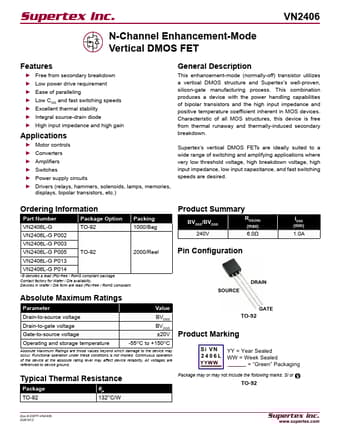

Preview of VN2406 PDF

Datasheet Details

Part number:

VN2406

Manufacturer:

Supertex Inc

File Size:

550.13 KB

Description:

N-channel vertical dmos fets.
