VN2406L Datasheet (Siliconix) - N-Channel Enhancement-Mode MOS Transistors

VN2406L, N-Channel Enhancement-Mode MOS Transistors

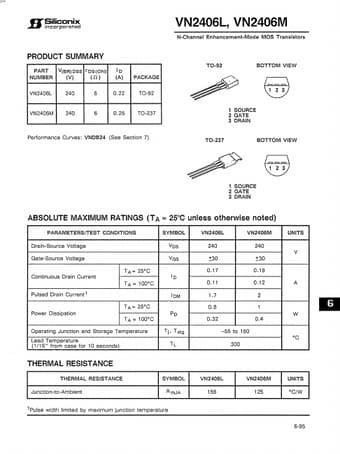

ICrSiliconix ~ incorporated PRODUCT SUMMARY PART V(BR)OSS rOS(ON) 10 NUMBER (V) (fl) (A) PACKAGE VN2406L 240 6 0.22 TO-92 VN2406M 240 6 0.25 TO-237 Performance Curves: VNDB24 (See Section 7) VN2406L, VN2406M N-Channel Enhancement-Mode MOS Transistors TO-92 BOTTOM VIEW 1 SOURCE 2 GATE 3 DRAIN TO-237 BOTTOM VIEW 1 SOURCE 2 GATE 3 DRAIN ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) PARAMETERS/TEST CONDITIONS SYMBOL Drain-Source Voltage Vos Gate-Source Volta
