STL09S03F Datasheet - Superworld Electronics

STL09S03F (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter

The STL Series provides 2W of power in a smaller compact industry standard package, typically used for 1W products. Its innovative design results in a high performance solution for a wide range of applications. The product is fully encapsulated in a non-flammable plastic case (meeting UL 94V-0) and .

SUPERWORLD ELECTRONICS STL Series 2W Single Output Surface Mount DC-DC Converter STL PRODUCT RANGE Model STL03S03F STL03S05F STL03S09F STL03S12F STL03S15F STL05S03F STL05S05F STL05S09F STL05S12F STL05S15F STL09S03F STL09S05F STL09S09F STL09S12F STL09S15F STL12S03F STL12S05F STL12S09F STL12S12F STL12S15F STL15S03F STL15S05F STL15S09F STL15S12F STL15S15F Vin (nom) (Vdc) 3.3 3.3 3.3 3.3 3.3 5 5 5 5 5 9 9 9 9 9 12 12 12 12 12 15 15 15 15 15 Vout (Vdc) 3.3 5 9 12 15 3.3 5 9 12 15 3.3 5 9 12.

STL09S03F Datasheet (162.47 KB)

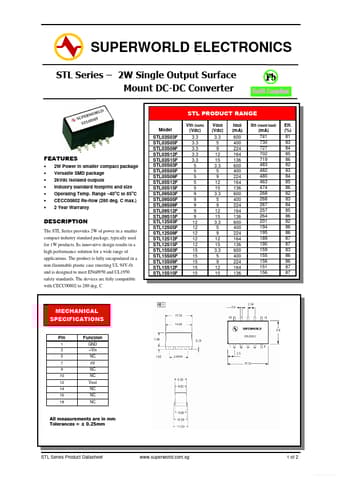

STL09S03F Datasheet Preview — Preview of STL09S03F PDF

Datasheet Details

Part number:

STL09S03F

Manufacturer:

Superworld Electronics

File Size:

162.47 KB

Description:

(stl03s03f - stl15s15f) 2w single output surface mount dc-dc converter.
